Plot Regeneration Dose Points

Simple plot functionality to visualise $L_x/T_x$ values against the dose extracted from data created by create_DataFile

Usage

plot_RegDosePoints(object, nrow = 3L, ncol = nrow, ...)

Arguments

object

list (required): input object created by create_DataFile

nrow

integer (with default): number of rows used for the plot panel

ncol

integer (with default): number of columns in the plot panel

...

further plot arguments passed down to modify the plot output. Supported arguments are xlab, ylab, type, pch, col, cex

Value

The function returns a plot

See also

create_DataFile

Author

Sebastian Kreutzer, Institute of Geography, Heidelberg University (Germany)

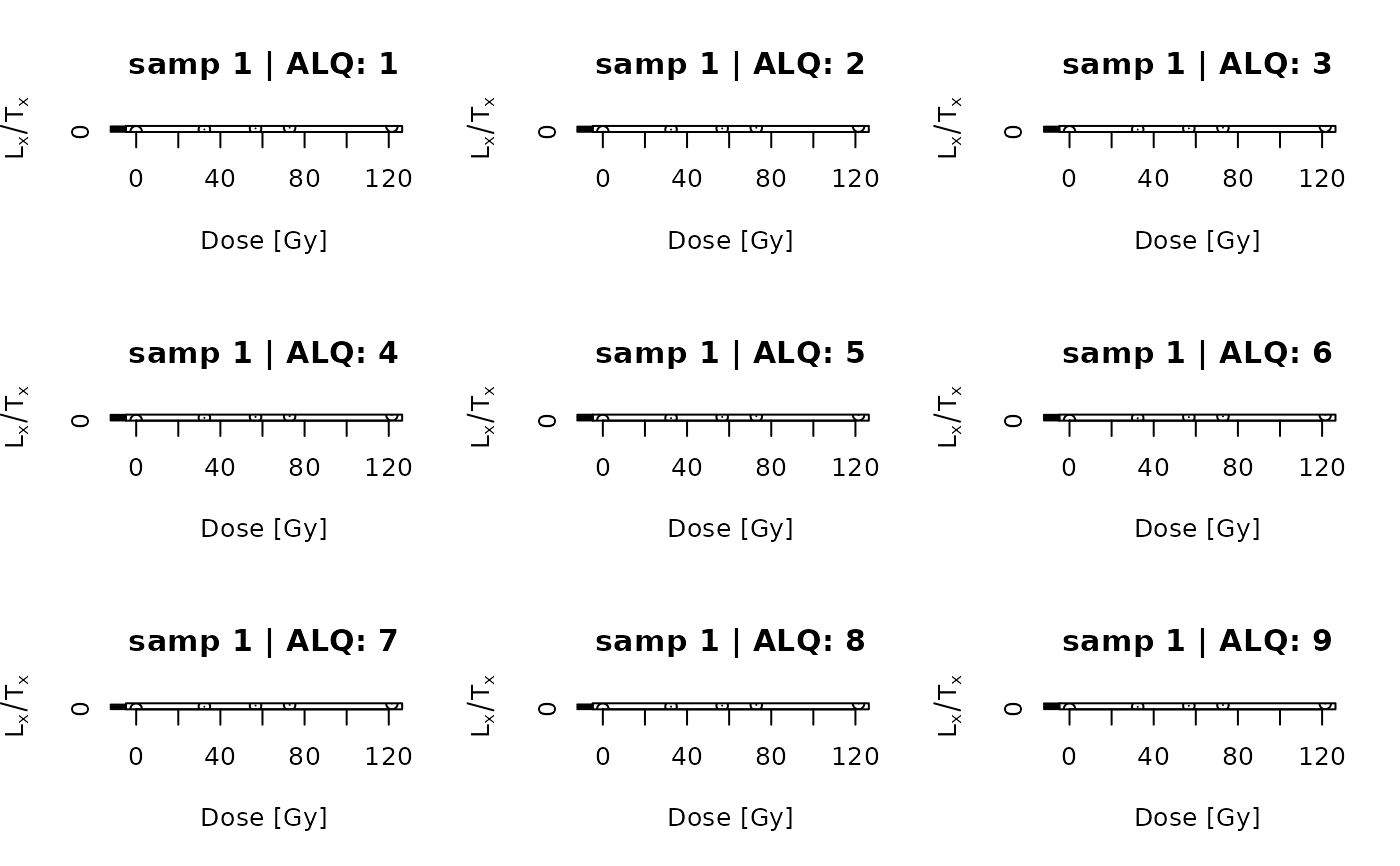

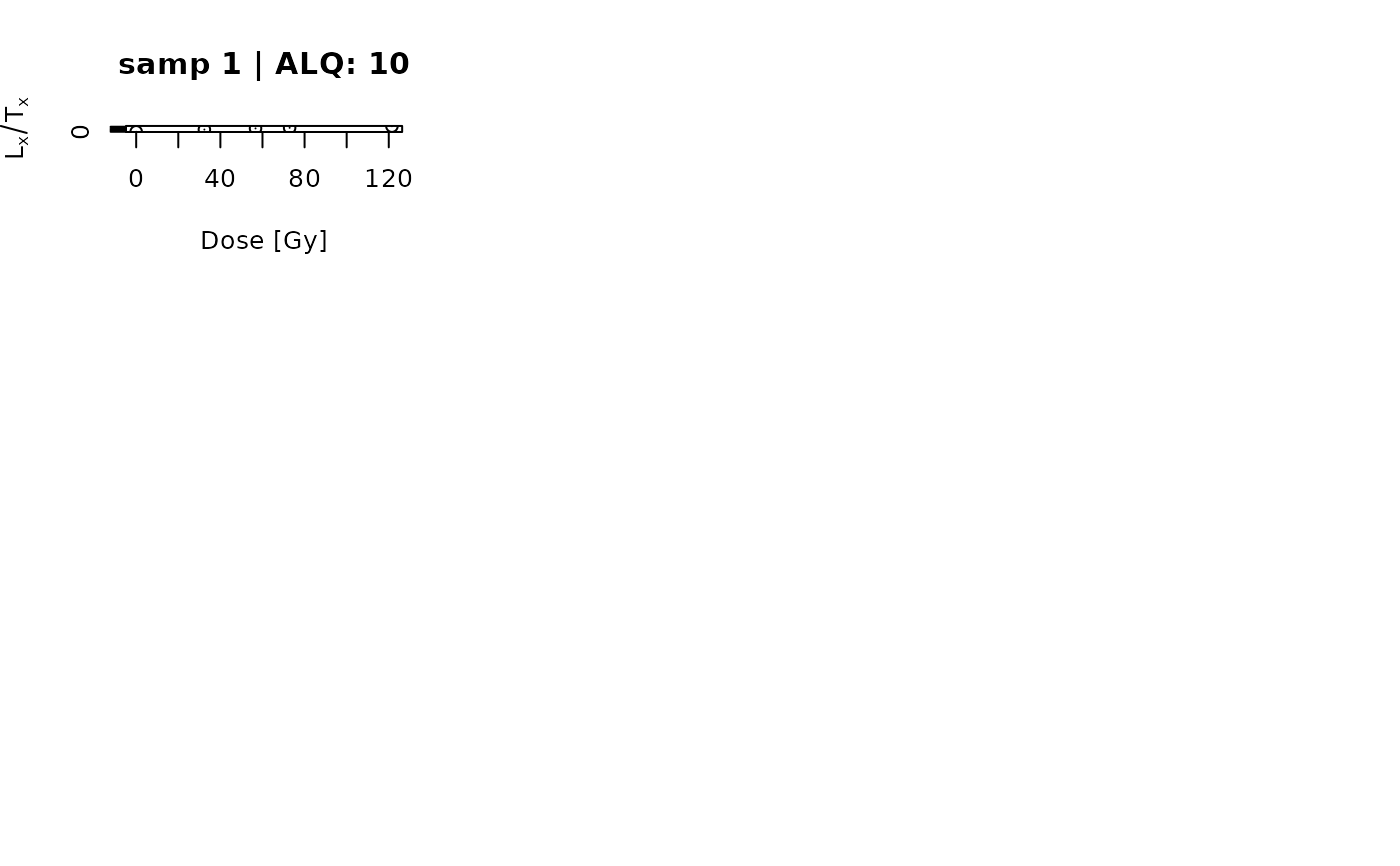

Examples

data(DATA3,envir = environment())
plot_RegDosePoints(DATA3)
